Column Rad Rooms

Column Rad Rooms

Over View

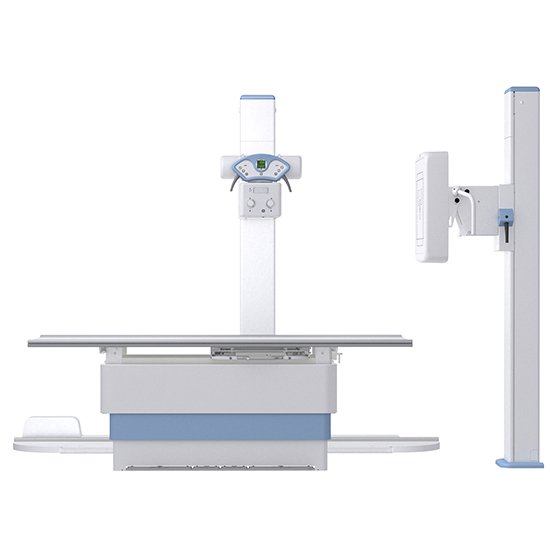

This versatile system features an all-floor-mounted column with options for vertical or tilt bucky, combined with a fixed or variable-height table. Available in manual, auto-tracking, and fully automated configurations, it supports a wide range of detectors, including cassettes (CR plates), DR, and WiFi models. It is designed to handle all your standard radiographic examination needs.

COMFORT OF USE

The four-way floating tabletop is constructed from low-absorption material with an aluminum equivalent of < 1.0 mm. Its width and design are suitable for patient positioning, supporting up to 300 kg of weight.

POSITIONING

The motorized column/tubestand provides both vertical and horizontal exposures and travels on rails for extensive coverage. Its +/- 180° rotation enables direct imaging of patients on stretchers, eliminating the need to transfer them to the table. Electromagnetic brakes precisely control all assembly rotations, facilitating accurate positioning for a wide variety of examinations.

FLAT PANEL DETECTORS

The system uses versatile flat-panel detectors, available in wired and wireless configurations, ideal for a wide range of examinations, including chest, extremities, abdomen, and spine. The WiFi detectors, with a thickness equivalent to standard CR cassettes, are particularly suited for specialized procedures such as femoro-patellar and weight-bearing foot imaging. Furthermore, their seamless sharing across multiple rooms and mobile systems ensures an efficient workflow for all routine diagnostic procedures.

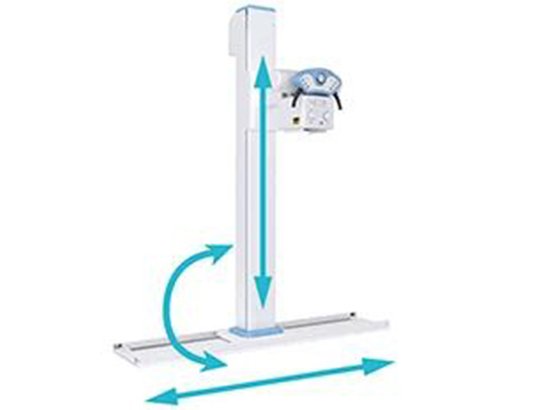

Movements

The system’s tube column achieves precise centering along three axes of motorized motion: longitudinal travel along a rail, lateral extension via a telescopic arm, and vertical adjustment. Combined with the +/-180° rotation of both the column and the X-ray tube head, it delivers complete directional flexibility. This allows for optimized imaging not only on the table and wall bucky but also directly on a stretcher, supporting a comprehensive range of examinations.

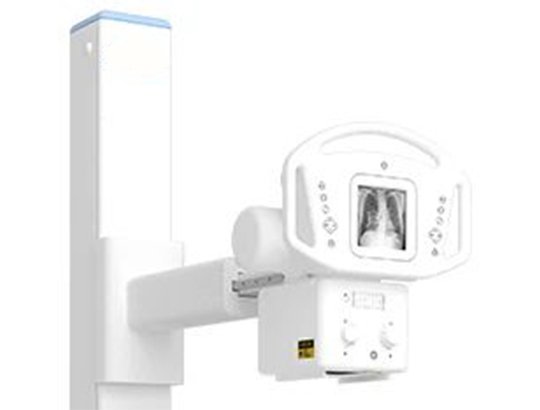

Control console

In the automated configuration, the column features an integrated touch-screen control console. This allows the technologist to modify all exposure parameters and adjust stands—including DSI, incidence, collimation, and filtration—in real time while remaining positioned close to the patient.

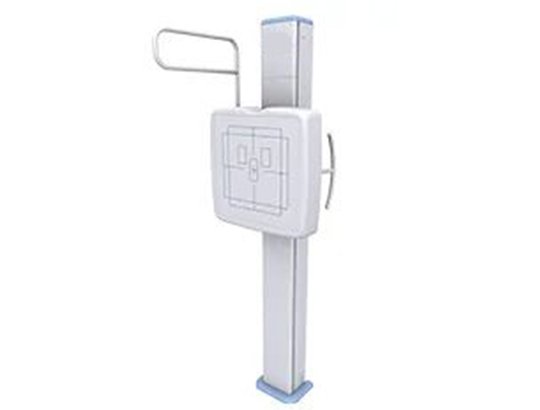

Wall bucky

The wall bucky moves vertically to enable full-length imaging of the skeletal system and pulmonary examinations with a standing patient. In either auto-tracking or fully automated mode, the tube’s movements are synchronized with the bucky to ensure perfect alignment and streamlined workflow.
